L, T, Z and D Profiles

L, T, Z and D sections for doors, windows, gates and railings

  • ISO 9001
  • ISO 14001
  • ISO 45001
  • CE

Our LTZD profiles are precision cold roll-formed sections designed specifically for fabricating steel doors, windows, grilles, gates and railings. Developed for durable, low-cost building fabrication, steel framing replaces traditional timber — eliminating warping and reducing site fabrication time.

The range includes L-section (L-40, L-48, L-55), T-section (T-48, T-60), Z-section (Z-48, Z-60) and D-section (D-60) profiles in thicknesses from 0.70 mm to 1.20 mm. The shape code carries the nominal size, and A, B, C and D dimensions in the table below show the exact profile dimensions fabricators jig against.

Every thickness is listed on its own line below with running weight, bundle count and bundle weight. Every bundle is tagged with a guaranteed section count.

Applications

  • Door and window frames
  • Steel gates and railings
  • Low-cost and prefabricated housing
  • Security grilles and screens
  • Architectural glazing frames
  • General metal fabrication

Sectors supplied

  • Construction
  • Housing development
  • Architectural fabrication
  • Building components

Specifications

Sizes and weights

Figures as published in our catalogue. Tolerances are held to the standard named on each table.

Technical Schematics

Cross-Section Profile Diagrams

Precision engineering drawings with dimension callouts (A, B, C, D, T) corresponding directly to the specification figures below.

L-Profile Window & Door Framing
L-40 · L-48 · L-55 · L-65

A = Overall base width, B = Flange lip width, C = Box height, D = Box width, T = Wall thickness

T-Profile Mullion & Transom
T-48 · T-60

A = Overall top flange span, B = Flange width, C = Total height, D = Web width, T = Wall thickness

Z-Profile Rebate & Astragal
Z-48 · Z-60

A = Overall width across lips, B = Flange width, C = Total height, D = Box width, T = Wall thickness

D-Profile Keyhole / Mushroom
D-60 (Door & Gate Rail)

A = Overall total height, B = Flared base width, C = Base neck height, R26 = Head radius, TH 4 = Gauge

LTZD profiles — sections, weights and bundle counts

Manufactured under ISO 9001, ISO 14001 and ISO 45001; CE marked

Shape Thickness mm Per bundle Weight Dimensions (mm)
kg/m kg/bundle A B C D
L-40 0.7 210 0.678 794 38 13 26.5 25
L-40 0.8 210 0.773 906 38 13 26.5 25
L-40 0.9 210 0.868 1017 38 13 26.5 25
L-48 0.7 143 0.818 653 48.5 13 26.5 35.5
L-48 0.8 143 0.933 745 48.5 13 26.5 35.5
L-48 0.9 143 1.048 837 48.5 13 26.5 35.5
L-55 0.7 100 0.937 523 52 15 34 37
L-55 0.8 100 1.069 597 52 15 34 37
L-55 0.9 100 1.201 670 52 15 34 37
L-65 0.8 100 1.069 597 52 15 34 37
L-65 0.9 100 1.201 670 52 16 34 37
T-48 0.7 150 0.818 685 50 13 26 24
T-48 0.8 150 0.933 781 50 13 26 24
T-48 0.9 150 1.048 877 50 13 26 24
T-60 0.7 100 1.029 574 61 15 34 31
T-60 0.8 100 1.174 655 61 15 34 31
T-60 0.9 100 1.318 735 61 15 34 31
D-60 0.7 60 1.029 356 51.5 51.7 51.7 12.7
D-60 0.9 60 1.318 456 51.5 51.7 51.7 12.7
D-60 1.2 60 1.749 604 51.5 51.7 51.7 12.7
Z-48 0.7 150 0.818 685 50 13 26.5 24
Z-48 0.8 150 0.933 781 50 13 26.5 24
Z-48 0.9 150 1.048 877 50 13 26.5 24
Z-60 0.7 100 1.029 574 61 15 34 31
Z-60 0.8 100 1.174 655 61 15 34 31
Z-60 0.9 100 1.318 735 61 15 34 31

One line per thickness, as published — a shape is not one product but one per gauge, and the bundle weight moves with it. A, B, C and D are section dimensions in mm.

Gallery

LTZD Profiles in production

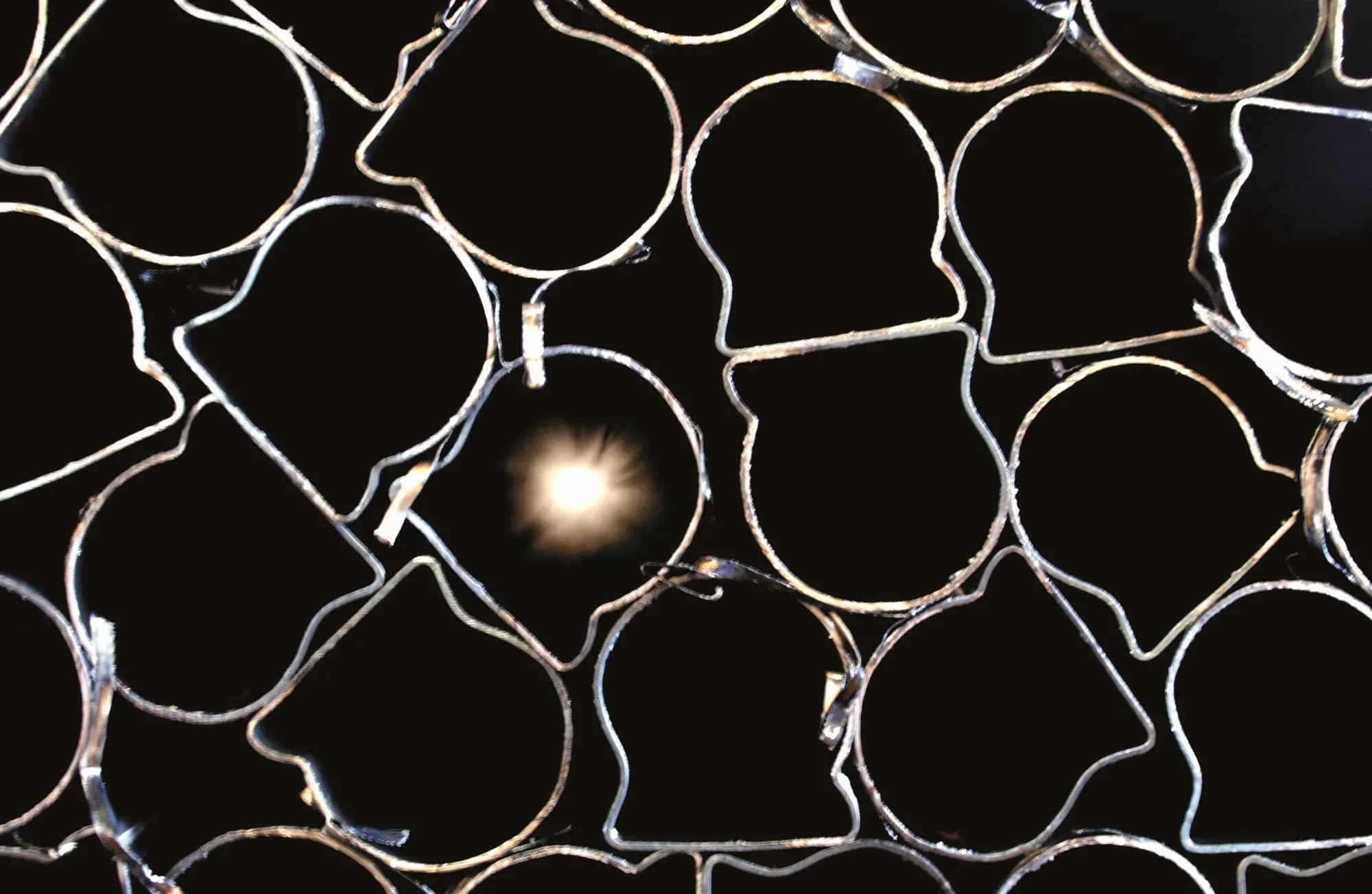

  • LTZD Profiles — ltzd profile ends
